Solar charge controller

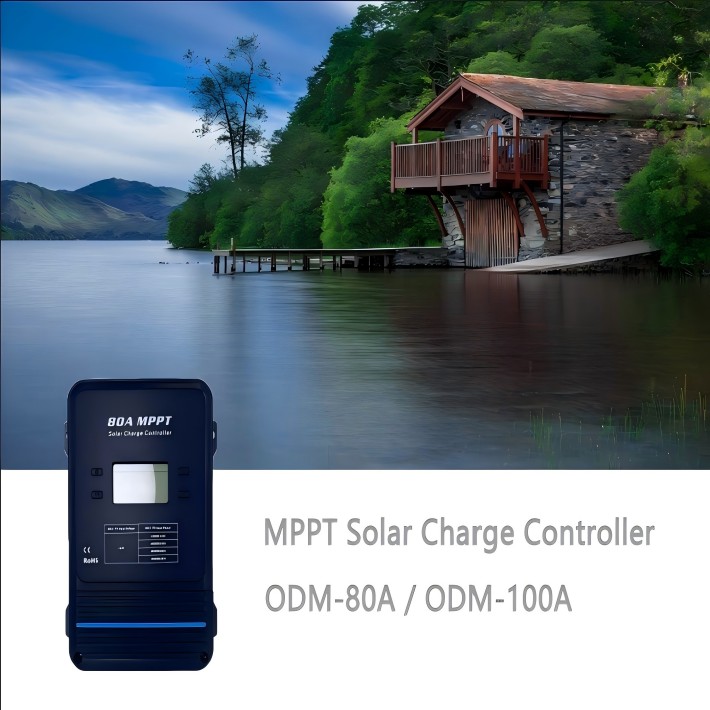

MPPT Solar Charge Controller (MPPT-80A)
●80/100A MPPT solar charge controller
●Real-time battery voltage detection to prevent battery overcharge damage
●Flexible parallel use,allowing more and larger solar panels to access
●Cooling fans enhance the charging performance
●The reverse polarity protection for both solar panels and batteries
●Over Temperature Protection,The controller of the device intelligently
●Lead-acid AGM/GEL/Flooded &Lithium batteries supportable
| Model No. System Voltage | ODM-MPPT80 ODM-MPPT 10012V/24V/36V/48V | |||||
| Battery Types | GEL/SEL/FLD(Auto);USE/LI(Manual) | |||||
| No-load Loss | 12V/12mA;24V/10mA;36V/8mA;48V/6mA | |||||
| Operating Temperature | -25℃~+45℃ | |||||
| Fan-on Temperature | >45℃ | |||||
| Light Control Voltage | 5V*n | |||||
| Parallel | Support parallel(Up to 9 units) | |||||
| System Grounded | Negative | |||||
| Communication Port | RS485(RJ12) | |||||
| Net Weight | 2.0kg | |||||
| Controller Dimension | 260*200*93mm | |||||
| Max Charging Current | 80A | 100A | ||||
| PV | ||||||
| Max Solar Input Voltage | <150Voc | |||||
| Max Solar Input Power | 1200W/12V 1500W/12V 2400W/24V 3000W/24V 3600W/36V 4500W/36V 4800W/48V 6000W/48V | |||||
| Battery Parameters | ||||||
| Battery Types | GEL (Default) | SEL | FLD | USE | (LiFePO4) | |
| Equalize Charge Voltage | -- | 14.6V*n | 14.8V*n | Default | -- | |
| Boost Charge Voltage | 14.2V*n | 14.4V*n | 14.6V*n | Default:GEL | Default:14.2V*n | |
| Float Charge Voltage | 13.8V*n | 13.8V*n | 13.8V*n | Default:GEL | -- | |
| Boost Charge Recovery Voltage | 13.2V*n | 13.2V*n | 13.2V*n | Default:GEL | -- | |
| Over-Discharge Recovery Voltage | 12.6V*n | 12.6V*n | 12.6V*n | Default:GEL | -- | |
| Over-Discharge Voltage | 11.1V*n | 11.1V*n | 11.1V*n | Default:GEL | Default:11.1V*n | |
| Temperature Compensation | (-3mV/2V/℃) | (-3mV/2V/℃) | (X-3mV/2V/℃) | (-3mV/2V/℃) | -- | |
