Energy storage system

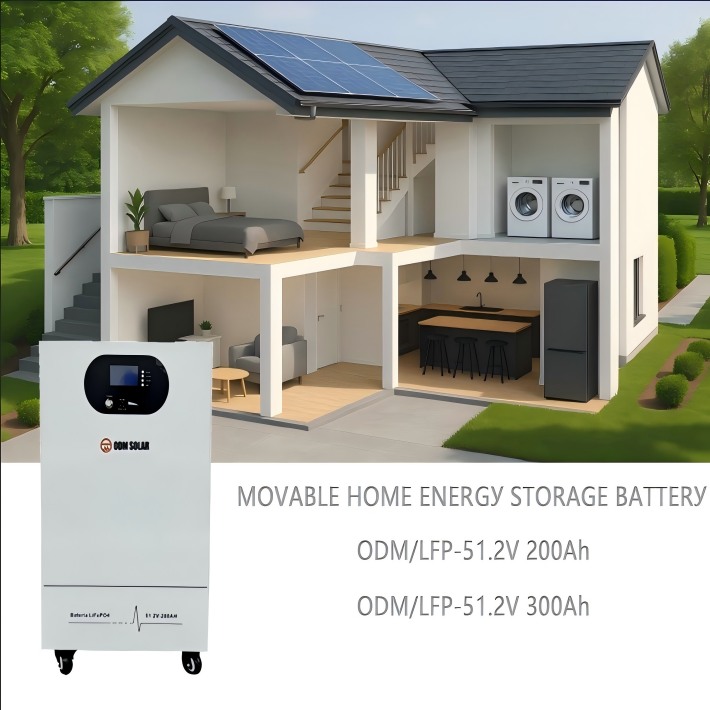

Movable home energy storage battery (LFP-51.2V 200Ah)
● A-grade LiFePO4 cells from top 5 brands
● Intelligent BMS automatic restoration
● 8 years warranty 15 years lifespan
● Cyce life:≥6000 times 80%DoD
● Support customization
● Support for parallel connecfion
● Support inverter communicafions
| Model Product Specification | ODM/LFP-51.2V 200Ah 51.2V 200Ah | ODM/LFP-51.2V 300Ah 51.2V 300Ah |
| Nominal Voltage | 51.2V | 51.2V |
| Nominal Capacily | 200Ah | 300Ah |
| Battery Energy | 10.24Kwh | 15.36Kwh |
| Max Charge Current | 100A* | |
| Max Discharge Current | 200A* | |
| Recommended Load | 5-8Kw | |
| Charging Cut-off Voltage | 57.6V±0.2V | |
| Discharging Cut-off Voltage | 44.8V±0.2V | |
| Cell Type | LFaPO4 eattery | |
| Terminal | M8 | |
| Case Material | Metal Box | |
| Communication Mode | RS485/CAN | |
| Charge Temperature Range | 0-45'C | |
| Discharge Temperature Range | -5-55'C | |
| Cycle Life | ≥6500 Cycles | |
| Designed Life | 12 Years | |
| Color | White | |
| Weight | ≈90Kg | ≈110Kg |
| Dimensions(LxWxH) | 67*55*31mm | 70*55*42mm |
| Assembly Method | Movable | |
