Hybrid inverter (ODM MHSI 3-5KW)

Product Introduction:

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:

Pure sine wave inverter with MPPT charger controller
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
1000W 2000W 3000W 4000W 5000W Hybrid solar inverter

Basic System Architecture:

The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
Generator or Utility.
PV modules (option)
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.

Connection Diagram:

Specification:

Model		ODM/MHSI - 3KW	ODM/MHSI - 5KW	ODM/MHSI - P5KW
	Parallel Connect Interface	no	no	With Parallel，9unit
Input	Input Sources	L + N + PE
	Rated Input Voltage	208 / 220 / 230 / 240VAC
	Voltage Range	154-264VAC ± 3 ( APP Mode ) 185-264VAC ± 3V ( UPS Mode )
	Freqency	50HZ / 60HZ ( Auto Adaptive )
Output	Rated Capacity	3000W	5000W	5000W
	Output Voltage	208 / 220 / 230 / 240VAC ± 5 %
	Output Frequency	50 / 60HZ ± 0.1 %
	WaveformT	Pure Sine Wave
	ransfer Time( adjustable )	Computers ( UPS Mode ) 10ms Appliance ( APP Mode ) 20ms
	Peak Power	6000VA	10000VA	10000VA
	Over Load Ability	Battery Mode
		1min @ 102 % -110 % Load
		10s @ 110 % -130 % Load
		3s @ 130 % -150 % Load
		200ms @ > 150 % Load
	Peak Efficiency(battery Mode)	> 94%	> 94%	> 94%
Battery	Battery Votage	24vdc	48vdc	48vdc
	Constant Charging Voltage(Adjustable)	28. 2vdc	56.4vdc	56.4vdc
	Floate ChargingVoltage(Adjustable)	27vdc	54vdc	54vdc
Chargers	PV Charging Mode	MPPT	MPPT	MPPT
	MAX.PV Input Power	1500W	5500W	5500W
	MPPT Tracking range	30-115vdc	120-430vdc	120-430vdc
	MAX.PV Input Voltage	145vdc	450vdc	450vdc
	Best open circuit voltage range	70-110V	370-430V	370-430V
	Best voltage	60-90V	300-340V	300-340V
	MAX.PV Charging Current	60A	80A	80A
	MAX.AC Charging Current	60A	80A	80A
	MAX.Charging Current	120A	80A	80A
Display	LCD Display	Display Running Mode / Loads / Input / Output etc
Interface	RS232	5PIN/Pitch2.0mm Baud rate 2400
	Communication Port	2X5PIN / Pitch2.54mm Lithium Battery BMS Communication Card WiFi card Dry Contact
Physical	Size(mm)	102*305*465
	Package weight（kg）		8.5	10
Environments	Operating Temperature		0 ~ 40℃
	Humidity		20 % ~ 95 % ( non-condensing )
	Storage Temperature		-15~60℃
	Altitude		Altiude Not Over 1000m Derating over 1000m Max 4000m
	Noise		≤ 50db

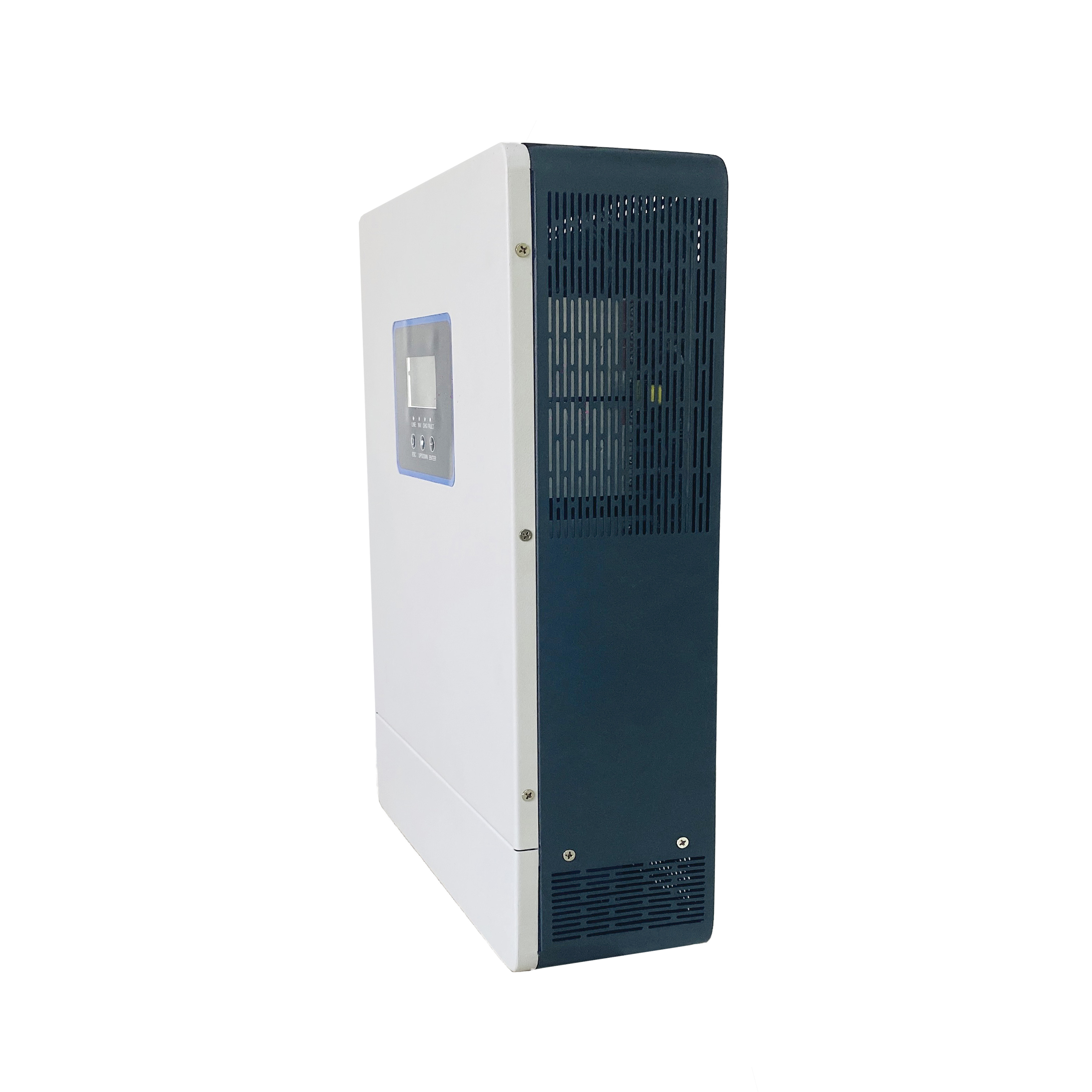

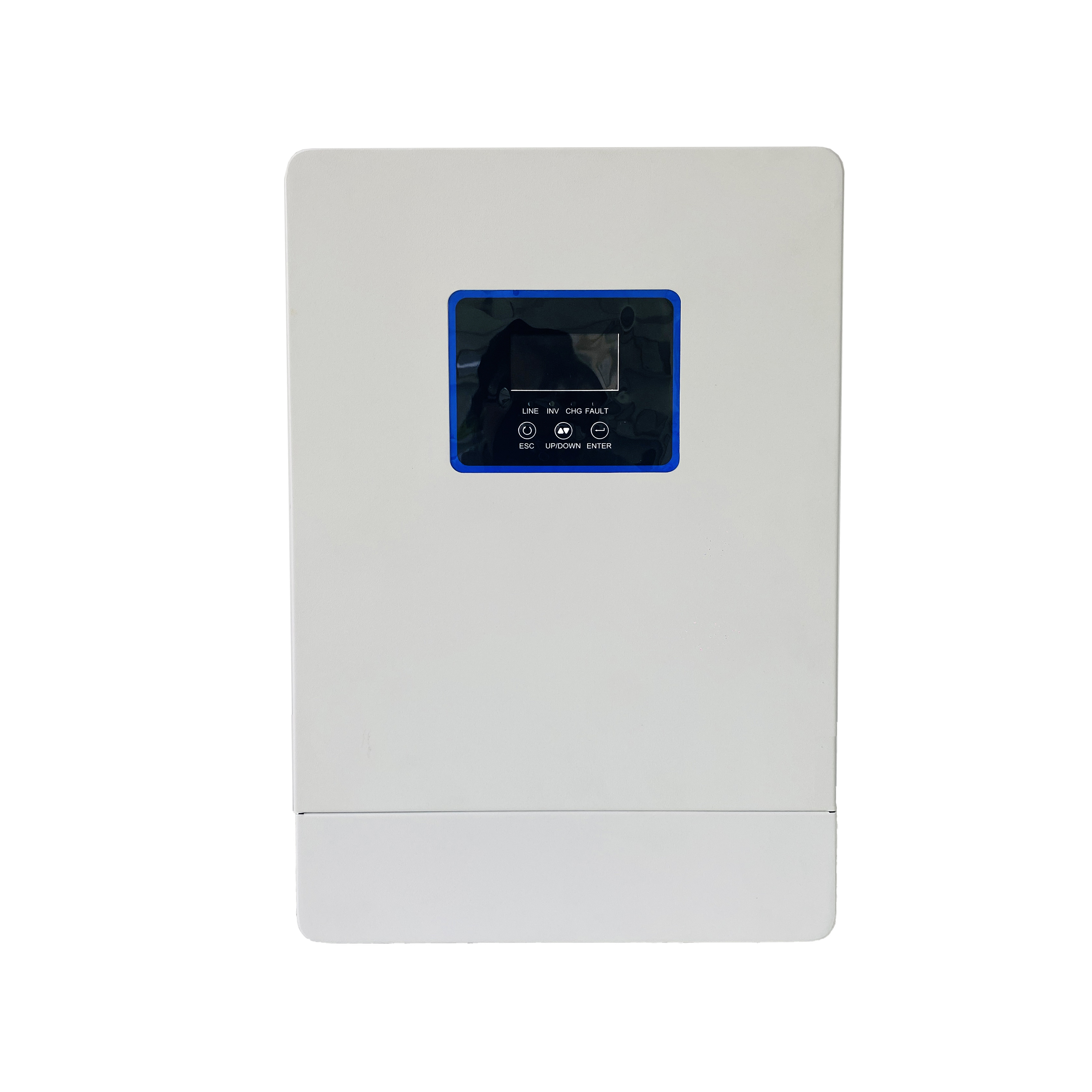

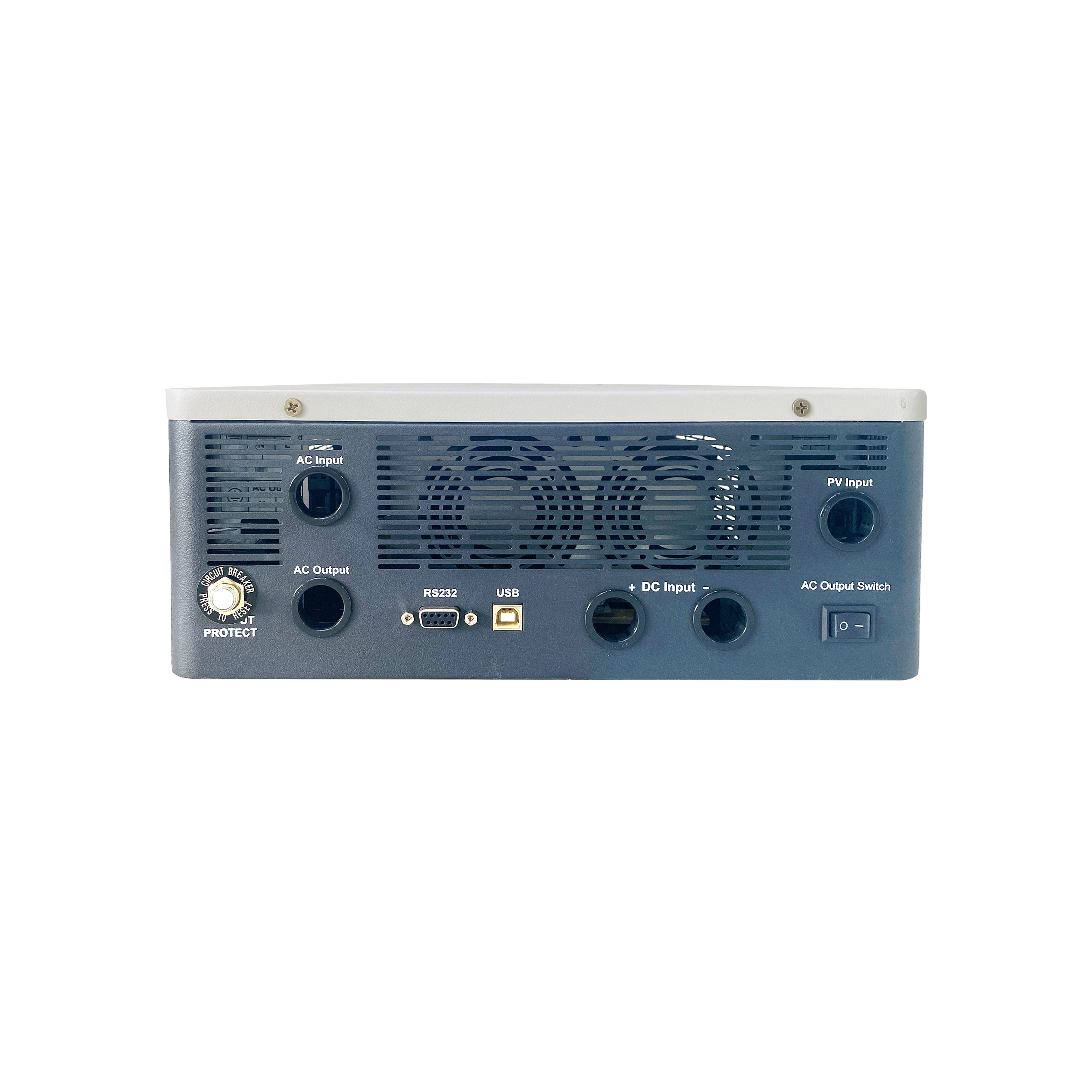

Picture:
