Pay as you go solar system
15W PAY AS YOU GO SOLAR SYSTEM
● Pay As You Go Daily/Monthly/Yearly
● Large upfront costs broken down
into smaller payments
● Keypad Area 4x4 Keypad,Code Input
● Remaining days Digital Display
● Output Ports Number of USB 5V(2Pcs)
● Output Ports Number of DC 12V(6Pcs)
| Model | ODM/PAYG-001 | ||

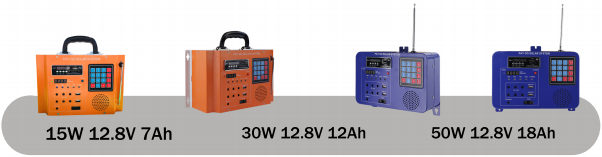

| ODM/PAYG-15W | ODM/PAYG-30W | ODM/PAYG-50W | |
| Solar Panel | |||
| Solar panel with cable wire | 15W/18V | 30W/18V | 50W/18V |
| Main Power Box | |||
| Built in controller | 7A/12V PWM | ||
| Built in battery | 12.8V/6AH(76.8WH) | 12.8V/12AH(153.6WH) | 12.8V/18AH(230.4WH) |
| Keypad area | 4*4Keypad,Code input | ||
| LED display | AC 220V display &battery DC display &remaining days display | ||
| Radio/MP3/Bluetooth | Yes | ||
| DC output | DC12V*6pcs USB5V*2pcs | ||
| Accessories | |||
| LED bulb with cable wire | 2pcs*3W LED bulb with 5m cable wires | ||
| 1 to 4 USB charger cable | 1 piece | ||
| *Optional accessories | AC wall charger,fan,TV,tube | ||
| Featurs | |||
| System protection | Low voltage,overload ,load short circuit protection | ||
| Charging mode | Solar panel charging/AC charging(optional) | ||
| Charging time | Around 5-6 hours by solar panel | ||
| Package | |||
| Solar panel size/weight | 350*350*17mm/1.9kg | 335*610*17mm/3kg | 525*670*25cm/5kg |
| Main power box size/weight | 300*180*340mm/3kg | 300*180*340mm/3.2kg | 300*180*340mm/3.5kg |
| Energy Supply Reference Sheet | |||
| Appliance | Working time/hrs | ||
| LED bulbs(3W)*2pcs | 13 | 25 | 38 |
| DC fan(10W)*1pcs | 7 | 15 | 23 |
| DC TV(20W)*1pcs | 3 | 7 | 11 |
| Mobile phone charging | 4pcs phone charging full | 7pcs phone charging full | 11pcs phone charging full |
