300W Solar Home System（ODM/SHS-300W）

● Battery,inverter,solar charger and everything integrated
● AC output,DC output &USB output
● Load  adaptability,including  inductive,capacitive,
   resistive,mixed  load
● Protection  input over voltage,under voltage,overload,overheat,
   and output short circuit
● Stable performance,safe and reliable,long service life

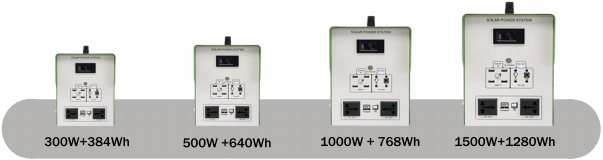

Model	ODM/SHS-300W	ODM/SHS-500W	ODM/SHS-1000W	ODM/SHS-1500W
Solar Panel
Solar panel with cable wire	100W/18V	150W/18V	200W/18V	300W/18V
Main Power BOX
Built in inverter	300W Pure sine wave	500W Pure sine wave	1000W Pure sine wave	1500W Pure sine wave
Built in controller	10A/20A/30A 12V PWM
Built in Lifepo4 battery	12.8V/30AH(384WH)	12.8V/50AH(640WH)	12.8V/60AH(768WH)	12.8V/100AH(1280WH)
AC output	AC220V/110V*2pcs
DC output	DC12V*6pcs USB5V*2pcs
LCD/LED display	Battery voltage/AC voltage display &Load Power display &charging/battery LED indicators
Accessories
LED bulb with cable wire	2pcs*3W LED bulb with 5m cable wires
1 to 4 USB charger cable	1 piece
*Optional accessories	AC wall charger,fan,TV,tube
Features
System protection	Low voltage,overload,load short circuit protection
Charging mode	Solar panel charging/AC charging(optional)
Charging time	Around 5-6 hours by solar panel
Package
Solar panel size/weight	1005*665*30mm/8kg	1480*665*30mm/11kg	1300*990*30mm/15kg	1956*990*50mm/22kg
Main power box size/weight	410*260*460mm/12kg	510*300*530mm/15kg	560*300*490mm/18kg	560*300*490mm/28kg
Energy Supply Reference Sheet
Appliance	Working time/hrs
LED bulbs(3W)*2pcs	64	106	128	213
Fan(10W)*1pcs	38	64	76	128
TV(20W)*1pcs	19	32	38	64
Laptop(65W)*1pcs	6	10	12	20
Mobile phone charging	19pcs phone charging full	32pcs phonecharging full	38pcs phone charging full	64pcs phone charging full
