Solar lighting system

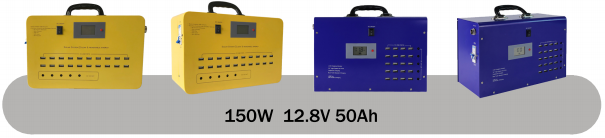

150W Solar Lighting Kits
● Able to charge 20 Mobile phones via USB
● Output Ports Number of USB 5V(20Pcs)
● Output Ports Number of DC 12V(5Pcs)
● Branded sides and front with display window
● Can put in the vending trolley anyway
● Be used for outdoors,train station,bank,beach,store
| Model | ODM/SLK-005 |
| Solar Panel | |
| Solar panel with cable wire | 150W/18V |
| Main Power BoX | |
| Built in controller | 20A/12V PWM |
| Built in battery | 12.8V/50AH(640WH) |
| DC output | DC12V*5pcs USB5V*20pcs |
| LCD display | Battery voltage,temperature and the battery capacity percent |
| ACcessories | |
| LED bulb with cable wire | 2pcs*3W LED bulb with 5m cable wires |
| 1 to 4 USB charger cable | 20pcs |
| *Optional accessories | AC wall charger,fan,TV,tube |
| Features | |
| System protection | Low voltage,overload ,load short circuit protection |
| Charging mode | Solar panel charging/AC charging(optional) |
| Charging time | Around 4-5 hours by solar panel |
| Package | |
| Solar panel size/weight | 1480*665*30mm/12kg |
| Main power box size/weight | 380*270*280mm/9.5kg |
| Energy Supply Reference Sheet | |
| Appliance | Working time/hrs |
| LED bulbs(3W)*2pcs | 107 |
| DC fan(10W)*1pcs | 64 |
| DC TV(20W)*1pcs | 32 |
| Mobile phone charging | 32pcs phone charging full |
