Outdoor Cabinet Energy Storage

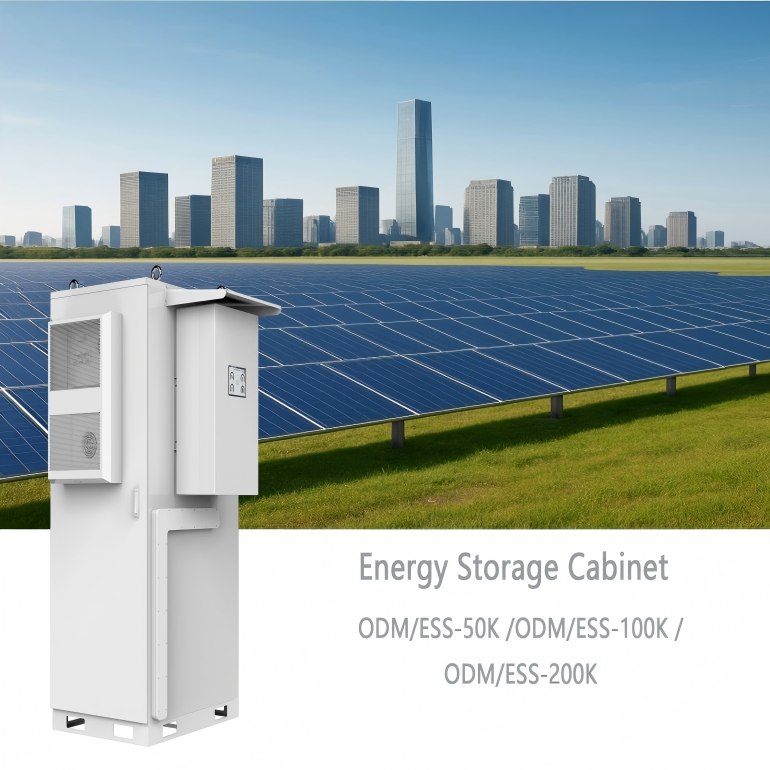

Energy Storage Cabinet (ESS-100K)
● Cobalt free lithium Iron phosphate (LFP)battery safety and long lifespan
● Intelligent BMS,providing complete protection
● Support high discharge power IP54,natural cooling
● Modular design,easy to expand for residential and commercial
● Battery module auto net working,easy maintenance
● Supportre motely monitoring and upgrade
● Use environmental protection materials
| Model | ODM/ESS-50K | ODM/ESS-100K | ODM/ESS-200K |
| Product | HV50K | HV100K | HV200K |
| Nominal Voltage | 512V | 358.4V | 716.8V |
| Nominal Capacity | 100AH | 280AH | 280AH |
| Cabinet Size(mm) | 640*830*1900 | 1250*1245*2175 | 1626*1245*2175 |
| Weight(KG) | 750KG | 1260KG | 2200KG |
| Charge/Discharge Power MAX | 100A | 140A | 140A |
| Protection Class | IP54 | IP55 | IP55 |
| Type Of Firefighting | Aerosol | Aerosol | Aerosol |
| Batterie Specifications | Parameter | Parameter | Parameter |
| Battery Types | 51.2V-100AH | 51.2V-280AH | 51.2V-280AH |
| Nominal Capacity(KWH) | 51KWH | 100KWH | 200KWH |
| Recommend Charge/Discharge Current (A) | 50 | 100 | 100 |
| Max.Charge/Discharge Current(A) | 100 | 140 | 140 |
| Communicaiton | RS485/CAN | ||
| Working Temperature | 0℃~50℃ Charge -10℃~50℃ Disharge | ||
| Design Life | 10years+ | ||
| Cycle Life | (0.5C/0.5C-80%DOD)>6000 times | ||
| Cooling Method | Air-cooled | ||
| Certification | UN38.3/MSDS/ROHS | ||
| AC Specifications | Parameter | Parameter | Parameterr |
| Rating | 50KW | 50KW | 50KW/100KW |
| Overloaded | 110% | ||
| Rated AC Voltage | 400V | ||
| Rated Frequency | 50/60Hz | ||
| Communicaiton | Ethernet/Modbus/TCP/IP | ||
| Inverter Type | Deye/Solis/Megarevo/Other | ||
